High-pressure gas filtration
Parker Finite S1R-6C04-023 Coalescing Filter
Manufacturer: Parker Hannifin / Finite · Model / MPN: S1R-6C04-023 · BenchSpec reference: BS-PARK-002
Available · 1 unit
316 stainless high-pressure filter assembly
Compact Parker Finite coalescing filter for compressed-gas, gas-sampling and other high-pressure filtration applications.
- Ports
- 1/4 in NPT
- Maximum pressure
- 5000 PSIG
- Element
- Grade 6 C-media
Used specialist surplus in very clean physical condition; appears unused or never installed. Identity, markings and visible condition verified; ports remain capped.
A$449
AUD · Asking price
View on eBayQuestions about this item? sales@benchspec.com.au
Purchase and payment take place on eBay. See the listing for current delivery options, returns and warranty terms.
Stock in Melbourne, Australia · Ready for international shipping
Catalogue reviewed .
Technical specifications
| Manufacturer | Parker Hannifin / Finite Filter |
|---|---|
| Model / MPN | S1R-6C04-023 |

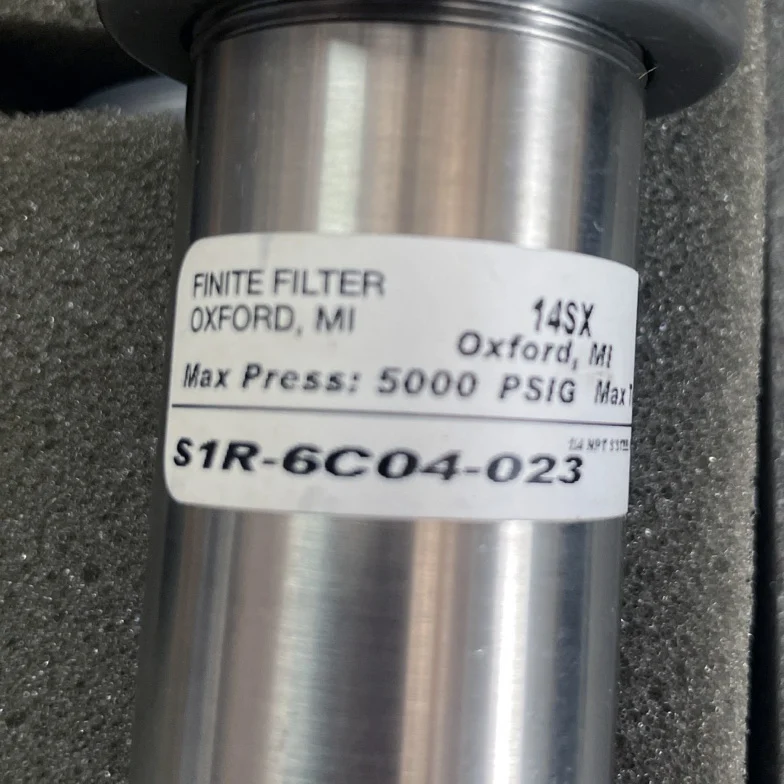

| Body marking | 14SX |
| Equipment type | High-pressure coalescing filter assembly |
| Construction | 316 stainless steel head, internals and bowl |

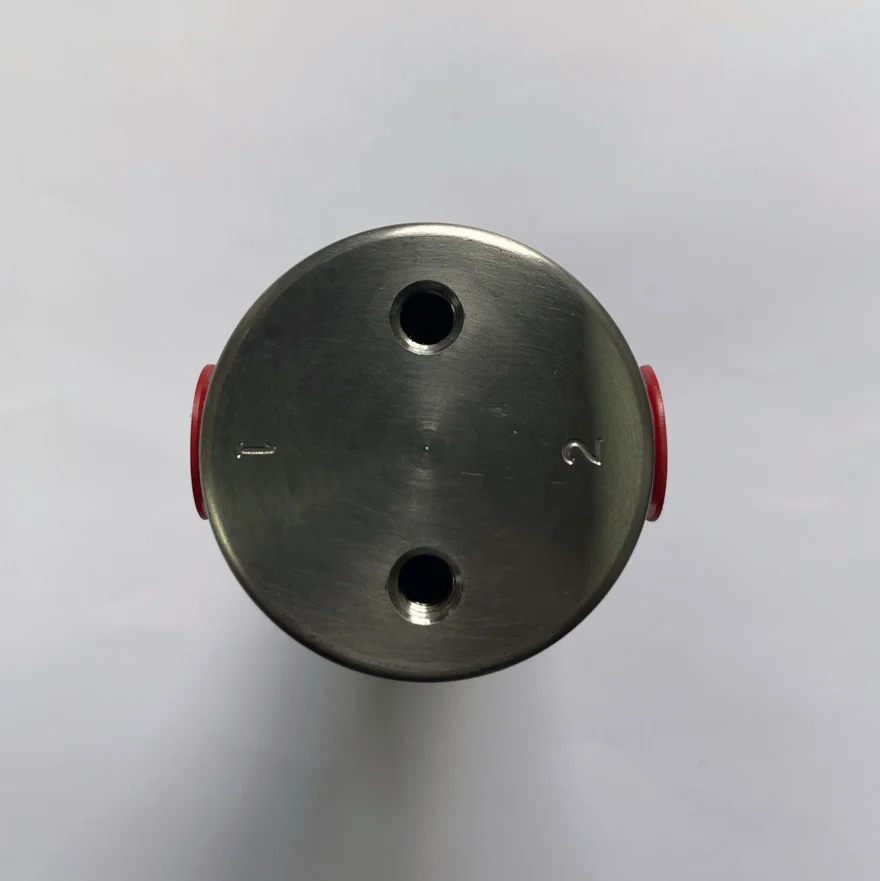

| Port size | 1/4 inch NPT |
| Maximum working pressure | 5000 PSIG / 345 bar |
| Maximum temperature | 350°F / approximately 177°C for the C-media configuration |
| Seal material | Fluorocarbon |
| Filter element | Grade 6, C-media, size 04-023 |
| Flow marking | Directional FLOW label |
| Measured size | Approximately 120 × 70 × 70 mm |
| Measured weight | Approximately 530 g |
| BenchSpec reference | BS-PARK-002 · Audit 13022 |
Condition & verification
Used specialist surplus in very clean physical condition; appears unused or never installed. The stainless housing, ports and external surfaces are exceptionally clean. Ports remain capped, with no visible process residue, staining or obvious installation damage.
BenchSpec has verified the identity, exact model marking, pressure marking, included filter assembly and visible condition.
No pressure or flow test has been performed; the unit has not been dismantled.
Included with this item
- Parker Finite S1R-6C04-023 filter assembly
- Installed Grade 6 C-media filter element

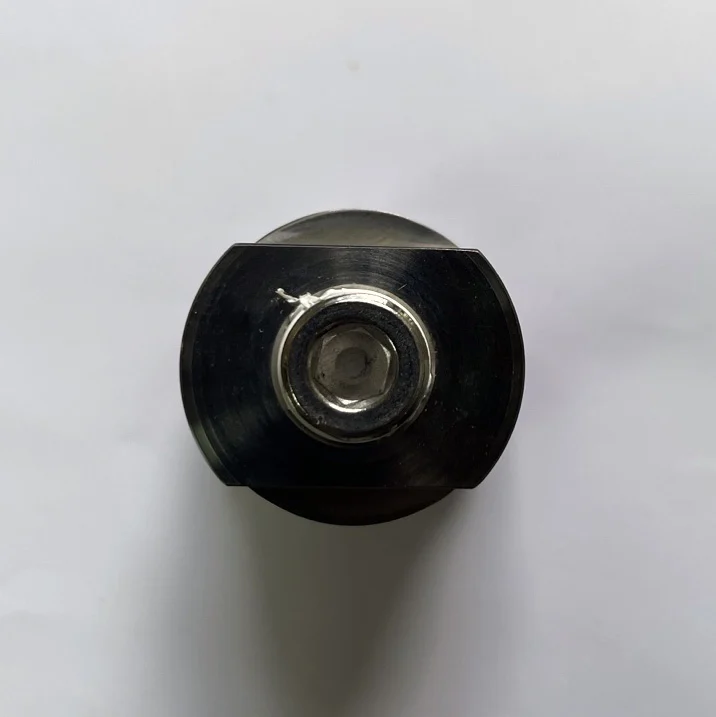

- Port caps and drain plug as photographed
