Inline process heater

Infinity Fluids CRES-ILB-12-0010-K-XP-PTC Inline Heater

Name: Infinity Fluids CRES-ILB-12-0010-K-XP-PTC Inline Heater
Brand: Infinity Fluids
SKU: BS-INFI-002
Price: 1495.00 AUD
Availability: InStock

Model / MPN: CRES-ILB-12-0010-K-XP-PTC · BenchSpec reference: BS-INFI-002

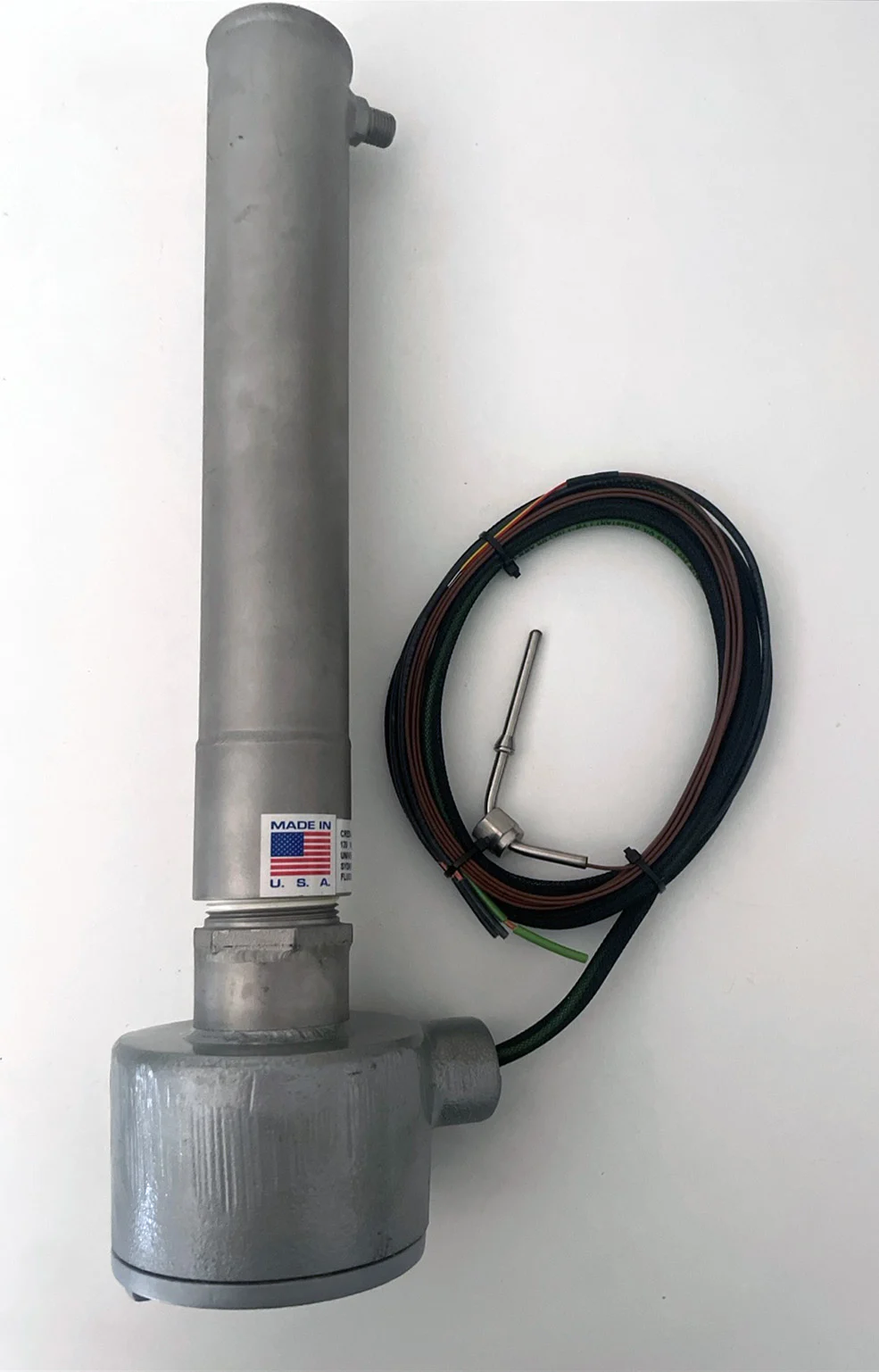

Actual Infinity Fluids CRES-ILB-12-0010-K-XP-PTC inline heater, termination enclosure, attached wiring and separate temperature probe — Actual item supplied. Select a photograph to view full size.

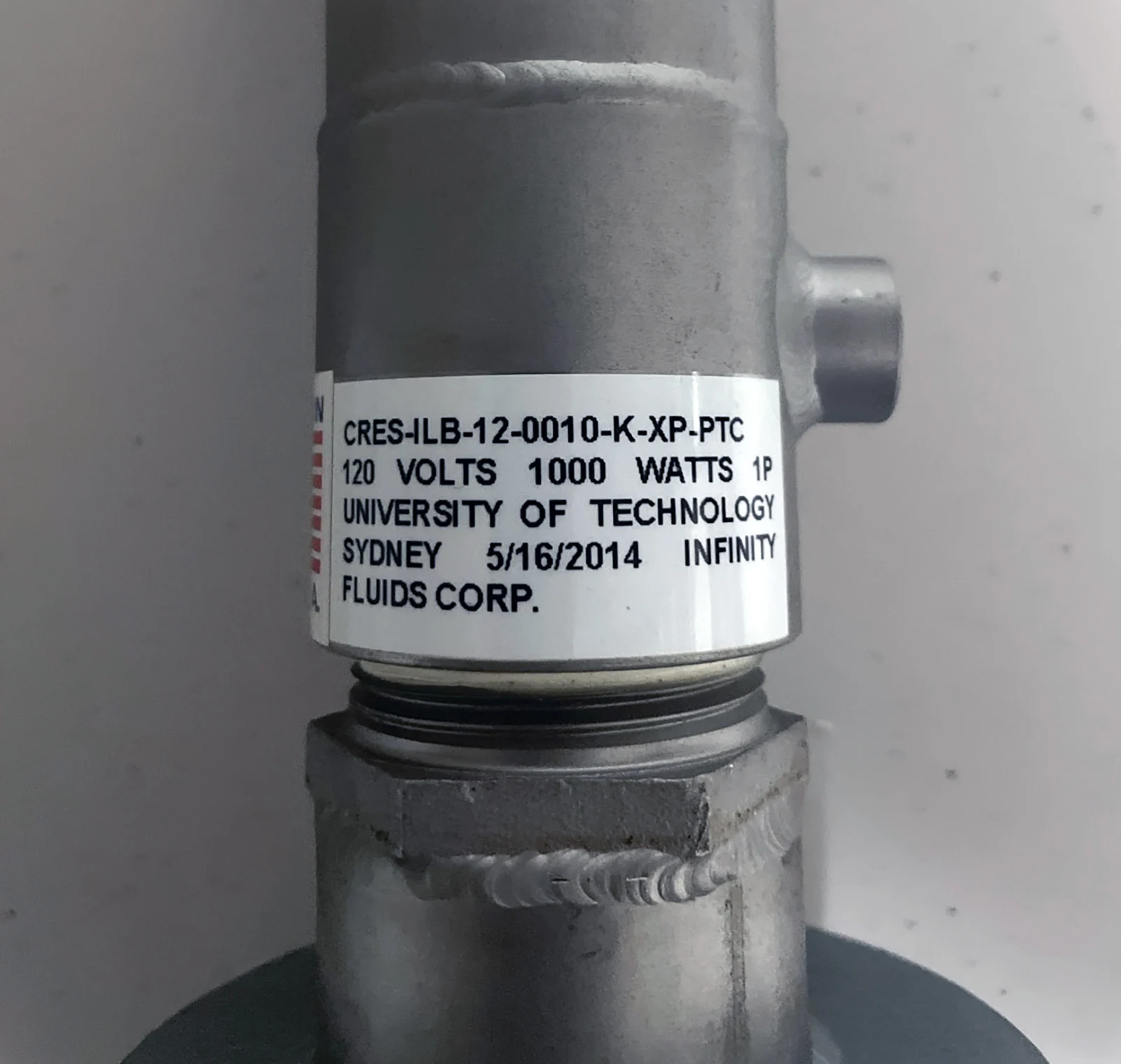

Heater nameplate: CRES-ILB-12-0010-K-XP-PTC, 120 volts, 1000 watts, single phase, Infinity Fluids Corp. — Nameplate

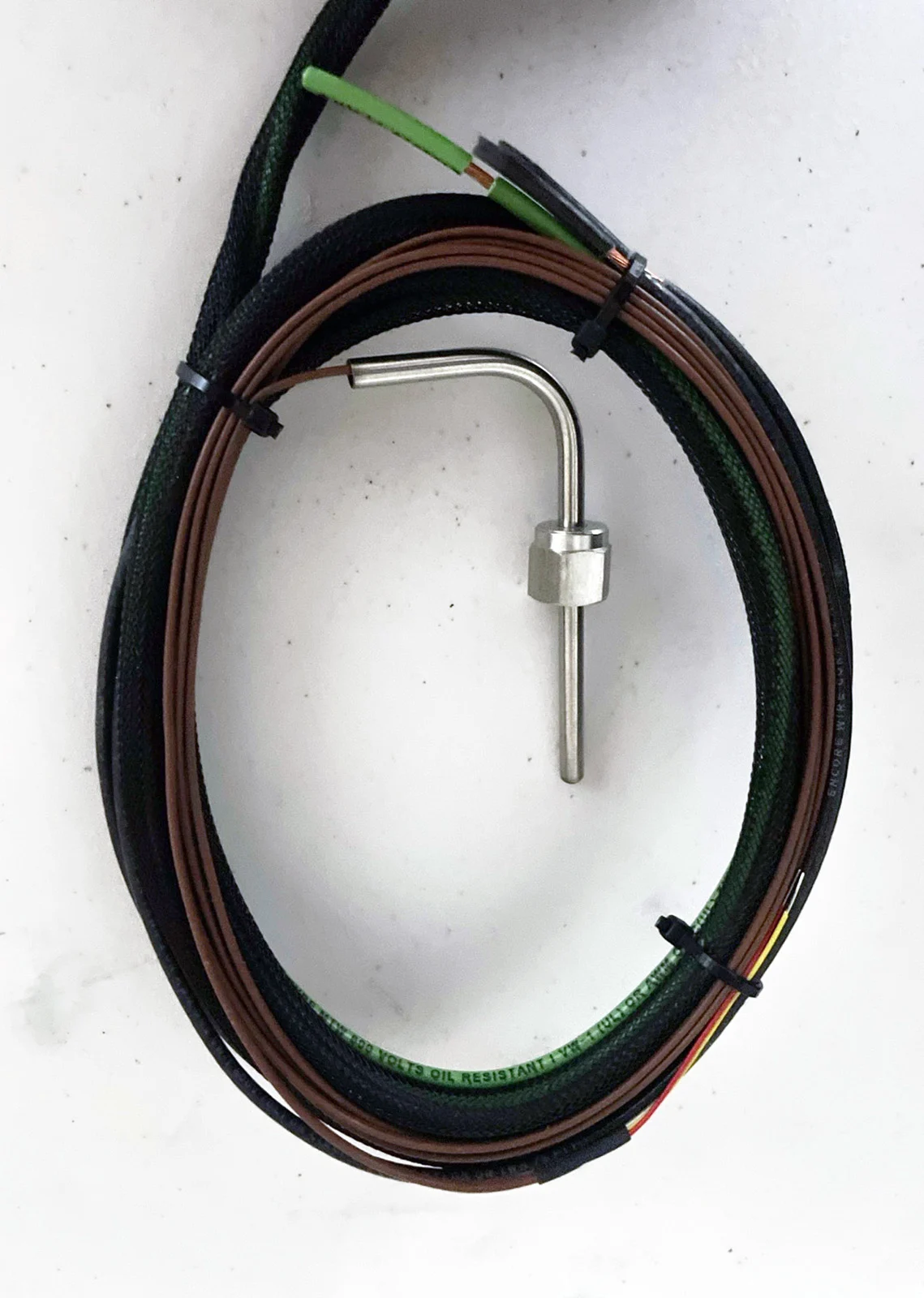

Separate metal temperature probe and coiled lead supplied with the heater — Probe and lead

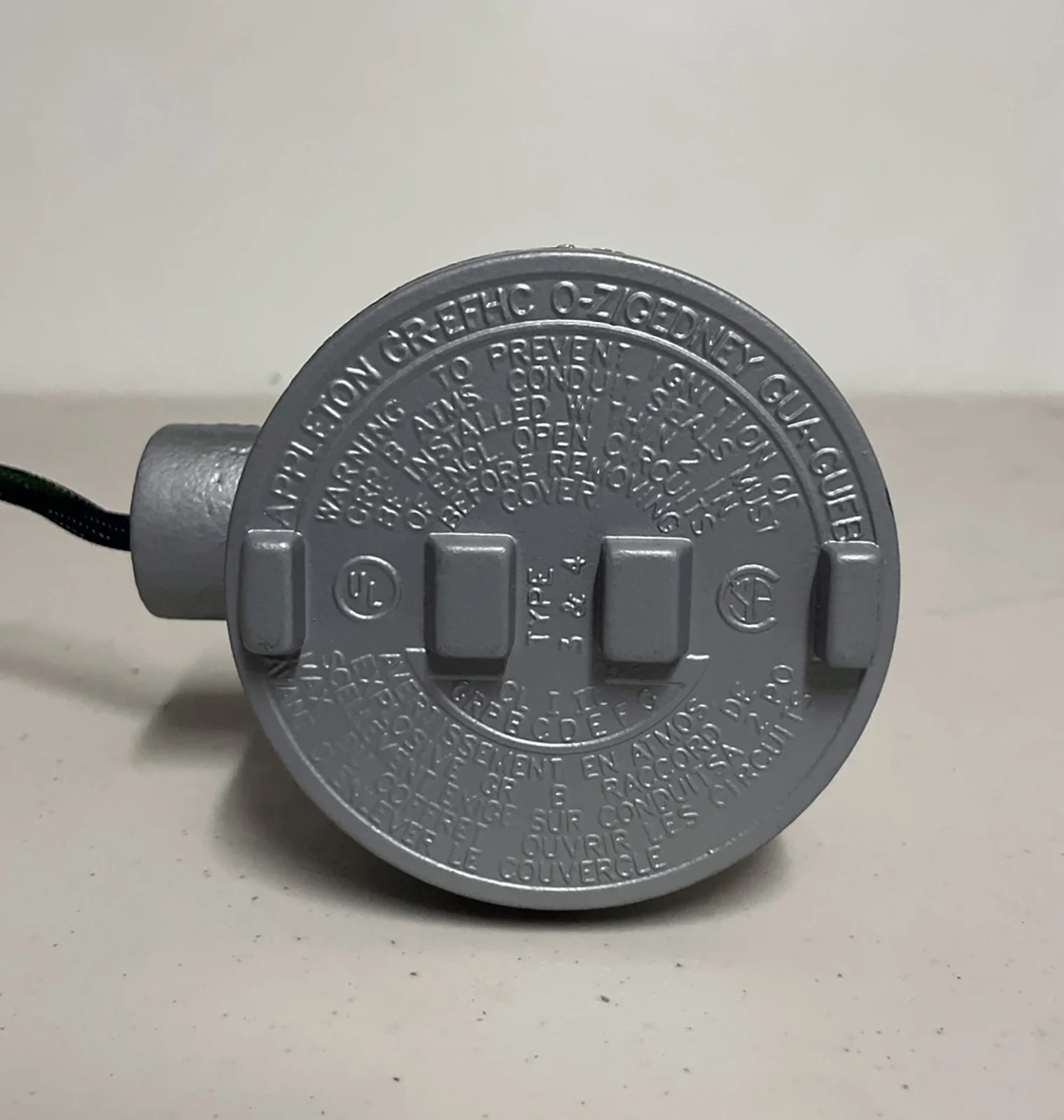

Close-up of the heater's metal electrical termination enclosure and cover markings — Termination enclosure

Available · 1 unit

120 V inline heater

Stainless process-heater body with electrical termination enclosure and attached wiring. A separate temperature-probe assembly and lead are included.

Supply: 120 V
Power: 1000 W
Phase: Single

Very clean specialist surplus; appears unused/never commissioned.

A$1,495

AUD · Asking price

View on eBay

Questions about this item? sales@benchspec.com.au

Purchase and payment take place on eBay. See the listing for current delivery options, returns and warranty terms.

Stock in Melbourne, Australia · Ready for international shipping

Catalogue reviewed 27 September 2026.

Technical specifications

Identification and ratings recorded for this item
Manufacturer	Infinity Fluids
Model / MPN	CRES-ILB-12-0010-K-XP-PTC
Equipment type	Inline process heater
Supply voltage	120 V
Rated power	1000 W
Phase	Single phase
Heater body	Stainless steel
Overall dimensions	Approximately 430 × 120 × 150 mm
Weight	Approximately 2.8 kg
Country of manufacture	United States (labelled Made in U.S.A.)
BenchSpec reference	BS-INFI-002

Condition & verification

Very clean specialist surplus; appears unused/never commissioned. Stainless heater assembly, termination enclosure, wiring and Type-K probe are clean and complete as offered, with no evidence of process contamination or previous installation. BenchSpec electrically checked the heater element, protective-earth continuity and Type-K thermocouple, including temperature response.

The heater element measured approximately 15 Ω, consistent with approximately 8 A at 120 V and the 1000 W rating. Protective-earth continuity to the stainless body was verified; no continuity was detected from either heater conductor to earth using a standard multimeter. Type-K thermocouple continuity and temperature response were verified.

The heater has not been energised under process load; Infinity specifies appropriate liquid/gas flow and control conditions for powered operation.

Electrical and handling requirements

120 V equipment. Do not connect directly to Australian 230 V mains.

Included with this item

Infinity Fluids inline heater with stainless body
Electrical termination enclosure and attached wiring
Separate temperature-probe assembly and lead

Matching Infinity Fluids PTC-12-20-1P 120 V temperature-control system available separately. The controller came from the same equipment lot and is marked FLA 8 A, consistent with the electrical characteristics measured on this heater. The heater and controller have not been operated together under process conditions.
